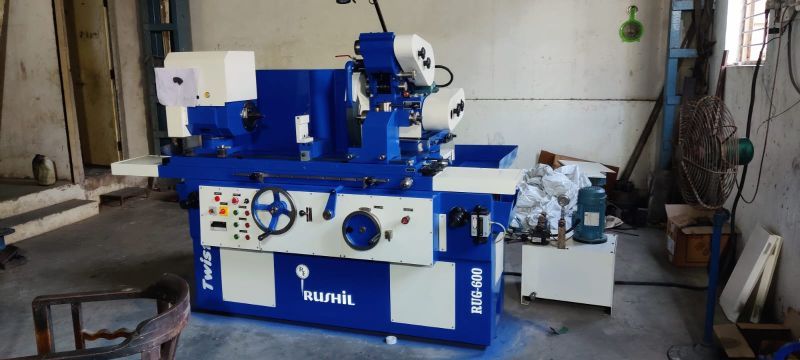

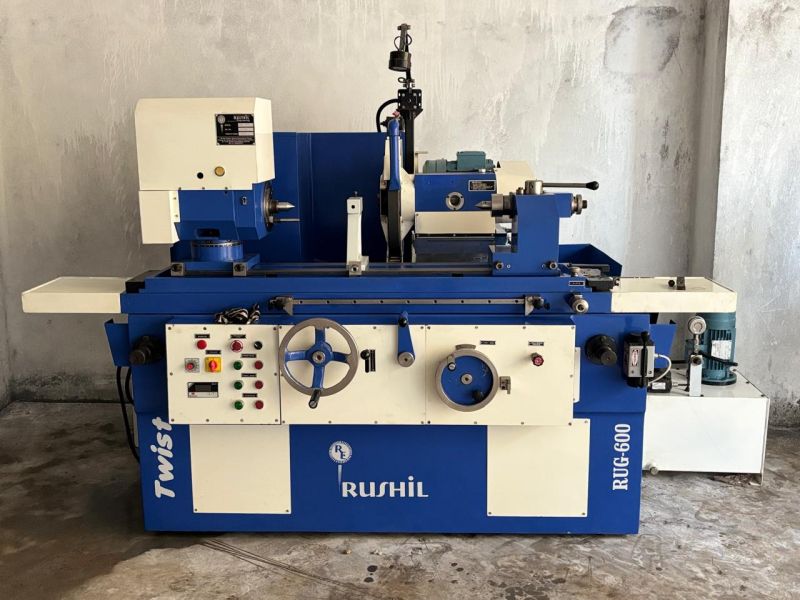

Hydraulic Cylindrical Grinding Machine

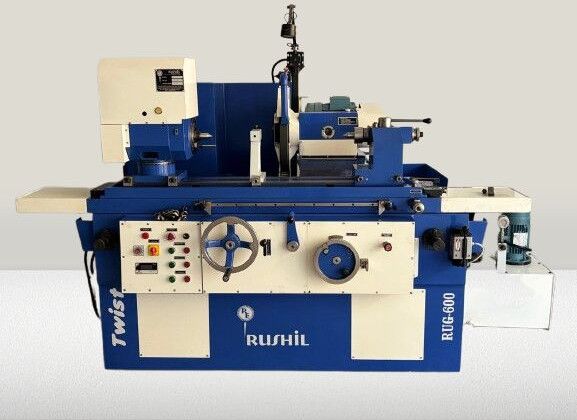

Leading Manufacturers, Exporters, Wholesaler and Retailer of Hydraulic Cylindrical Grinding Machine 600 X 160 CH, ABC 800 X 160 CH Hydraulic Cylindrical Grinding Machine, ABC 1000 X 160 Ch Hydraulic Cylindrical Grinding Machine, ABC 1200 X 160 Ch Hydraulic Cylindrical Grinding Machine, ABC 1500 X 160 CH Hydraulic Cylindrical Grinding Machine, ABC 2000 X 200 CH Hydraulic Cylindrical Grinding Machine and Heavy Duty Abc 300 X 150 Ch Hydraulic Cylindrical Grinding Machine. from Ahmedabad.
8 Lac / piece( + 18% GST applicable)
Get Best Price
| Business Type | Manufacturer, Exporter |
| Country of Origin | India |
| Condition | New |
| Type | Hydraulic Cylindrical Grinding Machine |
| Weight | 1000-10000kg |
| Maximum Swing Over Bed | 299 mm |
| Work Head Swivel | 90 deg |
| Work Head Center | 160 mm |
| Max. Grinding Length (mm) | 600 mm |
| Capacity | 600 mm |
| Distance Between Centers | 600 mm |
| Grinding Material | CI,Steel, D2, Rubber |
| Type of Grinding Machine | Universal Grinding Machine |
| Port | Mundra SEZ |
| Delivery Time | 30 Days |
Features:
- Slide ways coated with Turcite- B
- Hydrodynamic bearings for wheel spindle
- Centralized Lubrication System
Optional:
- Internal Grinding Attachment
- Automatic Plunge & Traverse Grinding Cycle
- Workhead & Wheelhead spindle with Anti Friction bearings.
- Inprocess gauging system
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Weight | 1000-10000kg |
| Voltage | 440V |
| Automatic Grade | Fully Automatic |
| Condition | New |
| Power | 10-15kw |
| Warranty | 1 Year |
| Country of Origin | India |
| Model Number | ABC 800 |
| Brand Name | Twist |
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Condition | New |
| Weight | 1000-10000kg |
| Voltage | 440V |
| Automatic Grade | Automatic |
| Power | 1-3kw, 10-15kw |
| Warranty | 1 Year |
| Country of Origin | India |
| Model Number | ABC 1000 |
| Brand Name | Twist |
| Port | Mundra SEZ |
Features:
- Slide ways coated with Turcite- B
- Hydrodynamic bearings for wheel spindle
- Centralized Lubrication System
Optional:
- Internal Grinding Attachment
- Automatic Plunge & Traverse Grinding Cycle
- Workhead & Wheelhead spindle with Anti Friction bearings.
- Inprocess gauging system
|
Center Height |
MM |
160 / 200 |
|
Distance between Centers |
MM |
1000 |
|
Maximum Swivel of Table |
Deg. |
+/-8 |
|
Table Speed infinitely variable |
M/Min |
0.1 - 4 |
|
Dwell at reversals |
Sec |
- |
|
Grinding Wheel (d x w) |
MM |
300 x 40 x 76.2 |
|
Wheel head Rapid approach |
MM |
40 |
|
Auto in feed at reversal(Optional) |
MM |
0.01 |
|
Wheel head swivel |
Deg. |
+/-45 |
|
No. Of work head speed. |
Step |
3 OR Variable |
|
Work head swivel. |
Deg. |
+/- 90 |
|
Work head Center. |
MT |
3 |
|
Tail Stock center. |
MT |
3 |
|
Internal Grinding Spindle.(Optional) |
MM |
60 x 250 X 20,000 RPM |
|
45 x 250 X 38000 RPM
|
12.50 Lac - 14 Lac / Unit( + 18% GST applicable)
Get Best Price
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Country of Origin | India |
| Machine Weight | 4000 Kg |
| Brand Name | TWIST BY Rushil Engineering,Twist |
| Voltage | 440V |
| Usage | Automotive Industry, Cutting Tools Industry, Steel Industry |
| Operating Type | Manual |
| Distance Between Centres (mm) | 1250 MM |
| Grinding Wheel Diameter(mm) | 500 x 50 x 203 mm |
| Max. Grinding Length (mm) | 1250 MM |
| Max. Grinding Wheel Speed (rpm) | 1400 - 1500 Rpm |
| Lubrication Oil Tank | 80 Ltr. |
| Max. Table Load (kg) | 200 KG |
| Model Number | ABC 1200 |
| Weight | 1000-10000kg |
| Automatic Grade | Automatic |
| Power | 10-15kw |
| Warranty | 1 Year |
| Port | Mundra SEZ |
| Delivery Time | 45-60 Days |
| Distance Between Centres (mm) | 1250 mm |
| Grinding Wheel Diameter(mm) | 500 x 50 x 203 mm |
| Max. Grinding Length (mm) | 1250 mm |
| Height of Centres (mm) | 200 mm |
| Max. Grinding Wheel Speed (rpm) | 1400 - 1500 Rpm |
| Work Head Swivel Range (Degree) | 90 |
| Spindle Morse Taper (Centres ) | MT 4 |
| Grinding Wheel/Spindle Motor Power (HP/W) | 7.5 hp |
| X-axis Feed Speed (m/min) | 3000 mm / per min |
| Word Head (No. of speeds) | infinity variable |
| Job Material | Ci, Steel, Bronz, D2, en |
| Z-axis Feed Speed (m/min) | 2000 mm / per min |
| Max. Table Travel (mm) | 1250 mm |
| Max. Table Load (kg) | 200 Kg |
| Min. Table Travel (mm) | 5 mm |
| Table Max. swivel (Degree) | 7 degree |
| Weight | 3200 Kg |
14 Lac / 1700000 piece( + 18% GST applicable)
Get Best Price
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Power | 10-15kw |
| Automatic Grade | Automatic |
| Country of Origin | India |
| Warranty | 1 Year |
| Voltage | 440V |
| Weight | 1000-10000kg |
| Condition | New |
| Model Number | ABC 1500 |
| Brand | Twist |
| Brand Name | Twist |
| Port | Mundra SEZ |
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Condition | New |
| Weight | 10000kg-1 Ton |
| Voltage | 440V |
| Automatic Grade | Fully Automatic |
| Power | 10-15kw |
| Warranty | 1 Year |
| Country of Origin | India |
| Model Number | ABC 2000 |
| Brand | Twist |
| Brand Name | Twist |
| Centre Height | 200 mm |
| Swing over table | 450 mm |
| Admit between Centers | 2000 mm |
| Max. Grinding Length | 2000 mm |
| Max. Swivel of Table | ± 6° deg |
| Guideways coating | Turcite –B slide way coated on both moveable slides to prevent stick slip motion. |
| Color | Blue / Green |
| Port | Mundra SEZ |
| Delivery Time | 4- 5 Months |
5 Lac - 6 Lac / piece( + 18% GST applicable)
Get Best Price
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Maximum grinding Length | 300 mm |
| Height of centre | 150 mm |
| Max. distance between Centers | 300 mm |
| Guide ways coating | Turcite –B slide way coated on both moveable slides to prevent stick slip motion |
| Dwell at reversal | 0-30 sec |
| Brand | Twist |
| Model Number | ABC 300 |
| Brand Name | Twist |
| Weight | 1000-10000kg |
| Voltage | 440V |
| Automation Grade | Automatic |
| Power | 10-15kw |
| Warranty | 1 Year |
| Country of Origin | India |
| Port | Mundra SEZ |
| Delivery Time | 45-60 Days |
